Comparison of Series from Different Studies

Split the Screen for Two Studies and One Series

• Click the button in the Preview Bar header
• A menu with screen splitting options will appear
• Click on the item "2 studies horizontally, 1 series"

The screen will split into two parts: The first part will contain the current study,
the second part will be about the next study in the Preview Bar

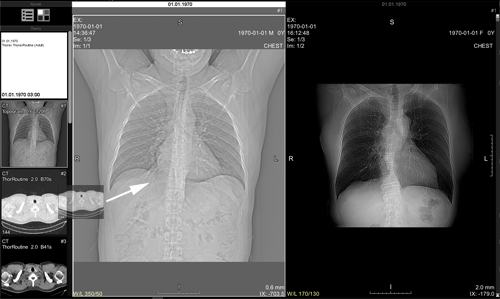

• Drag the desired series for comparison into the first half of the screen from the Preview Bar

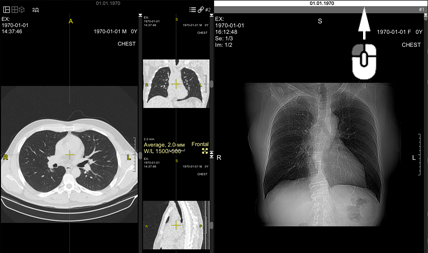

• Activate the second study (click on its header on the screen)

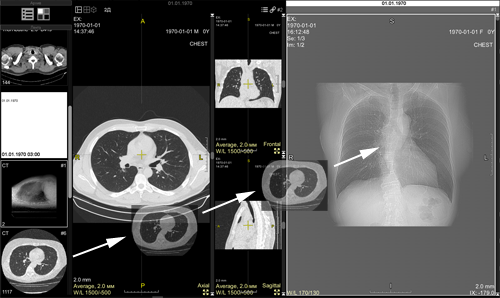

• Drag the desired series for comparison into the second half of the screen (second study) from the Preview Bar

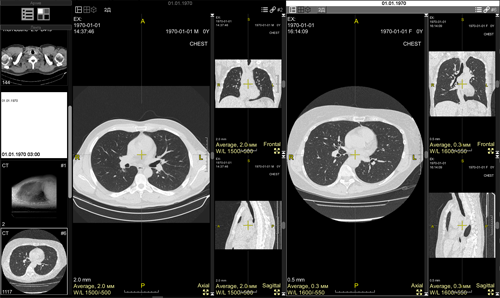

  Both studies are now presented on the screen



• Press the button on the tool panel, it became

Image scrolling, shifting, and rotations will occur synchronously on both series

Remember to click the button again to turn off studies synchronization when you no longer need it
